PRINTING CAPABILITIES
- PVC Shrink Sleeve Label
- PET Eco-Friendly Label
- Wrap Around Label
PVC Shrink Sleeve Label
PVC (Polyvinyl Chloride) labels gives flexibility and softness to labels designed through it. The PVC label are more attractive and noticeable as they comes out of plain surface with flexible and rubber shape text and design, which makes it worth looking at. They come in all shapes and sizes with multi colors which does not lose its brightness. At Win Smith, our PVC labels are 100% customized and come with strong ability to withstand water threat.
Benefits/ Applications:
Our PVC labels are perfect to be used in the packaging of food and beverage containers — with all customized according to your special requirements. Suitable for tamper-evident, asset, safety warning, licensing tags, as well as package seal applications.
- Food & Beverages
- Aluminium & Steel Can Labeling
- Household Products
- Personal & Hair Care Product
- Stationery Packaging
PVC Specifications
| Thickness | Width (LF) | Cut Length | Shrinkage |
|---|---|---|---|
| 0.035 - 0.050mm | 25mm - 300mm | 30mm - 300mm (for Pcs) 500m - 1,000m (for Roll) |
MD: 1-2% TD: Up to 50% |
Specifications may be varied in accordance with individual order.
PET Eco-Friendly Label
PET (Polyethylene) eco-friendly label is a bestowed to odd shaped bottles and containers with its high shrinking capacity. It offers the best scuff resistance and are highly demand among local and international market.
The great transparency and the shiny surface offers a special charm and lend the PET-packaging a sophisticated image. New labelling solutions with double-sided printed labels give the bottle an outstanding beauty. The flexible production process permits a nearly unlimited diversity of design.
It promotes sustainability and give label second life.
Benefits/ Applications:
In comparison to other packaging materials, PET offers many advantages. For instance, PET labelling gives a weight reduction in packaging production process. In addition, PET eco film are easily recyclable with the container itself thus proving environmental friendly. The outstanding properties of PET are:
- High transparency
- Exceptionally shiny surface
- Good barrier properties
- Precise moulding of the bottle neck
Why PET Shrink Label:
- Applicable to various bottle shapes
- Tamper Evidence + Body Label
- 100% UV Protection (PET White Firm)
- Extreme Clarity
- Environmental Friendly
- It does not include plasticizer and it is safe for human body
PET Specifications
| Thickness | Width (LF) | Length | Shrinkage |
|---|---|---|---|
| 0.045mm - 0.070mm | 50mm - 600mm | 30mm - 300mm (for Pcs) 500m - 1,000m (for Roll) |
MD: Up to 2% - 5% TD: Up to 70% |
Specifications may be varied in accordance with individual order.
BOPP / OPP Labeling
Our BOPP (Biaxially-Oriented Polypropylene) labels are best suited for product owners who need a high level of performance because of its durability, light weight and cost-effectiveness. Basically, BOPP labels can be divided into two main categories known as: Pearlized BOPP and Clear BOPP.
Pearlized BOPP labels are our most commonly used material and is suitable for most wrap around bottles. Pearlized BOPP labels are made with polypropylene material and they provide glossiness and shining appearance.
While, Clear BOPP labels are a clear version of the Polypropylene (BOPP) material. It has the same water-resistant qualities as the Pearlized BOPP. Clear BOPP Labels provide more of a “no label” look and is also suitable for window stickers.
Benefits/ Applications:
One of the biggest differences between regular polypropylene and BOPP is how they’re made. During manufacturing, regular polypropylene is extruded – a process that stretches and pulls the material through a die – in a single direction whereas BOPP is stretched in two directions, hence the name “biaxially.” This process gives BOPP some advantages over polypropylene, such as:
- Provide a graceful look and clean finish to the product
- Provide maximum yield thereby being most cost effective
- Higher tensile strength that facilitates high-speed printing
- Greater stiffness
- Excellent printability
- Moisture and abrasion resistant
- Oil, chemical and acid resistant
BOPP / OPP Specifications
BOPP wrap around labels offer fast and efficient production facility to our customers with high volume, high speed labeling requirements. They are widely used in single-serving beverages such as soft drinks and water bottle labels. It is the most cost effective solution for customers as the volumes are high. Compare to paper labels, BOPP labels, BOPP wrap around labels are highly resistant to water.
BOPP wrap around labels combine benefits of traditional shrink sleeve labels with the benefits of BOPP roll fed labels. Win Smith provides a unique wrap around that can be fit to conform to your bottles design. We offer our custom printing by approved artwork design from clients. Products are delivered to customers in requested amounts in rolls.
BOPP / OPP Specifications
| Type | Thickness | Density | Roll Length | Label Height |
|---|---|---|---|---|
| OPP Clear | 0.038 - 0.04 | 0.91 - 0.93 | 4000 meter | 20 - 300 mm |
| Pearl OPP | 0.038 - 0.04 | 0.61 - 0.68 | 5400 meter | 20 - 300 mm |
Specifications may be varied in accordance with individual order.
We Provide Value Added of Innovative Labeling Solutions
In line with ISO 9001:2015 certification, Win Smith provides premium quality printing solutions for brands across both domestic and international markets (including PET and PVC shrink sleeve labels, custom stickers, wrap around labels and laminated flexible packaging). Rather than offering customizable labels printing services, we do also provide one-stop packaging solution which encompasses a series of value-added secondary processes to make your packaging process more convenient and attractive, including:
- Perforation for Cap seal

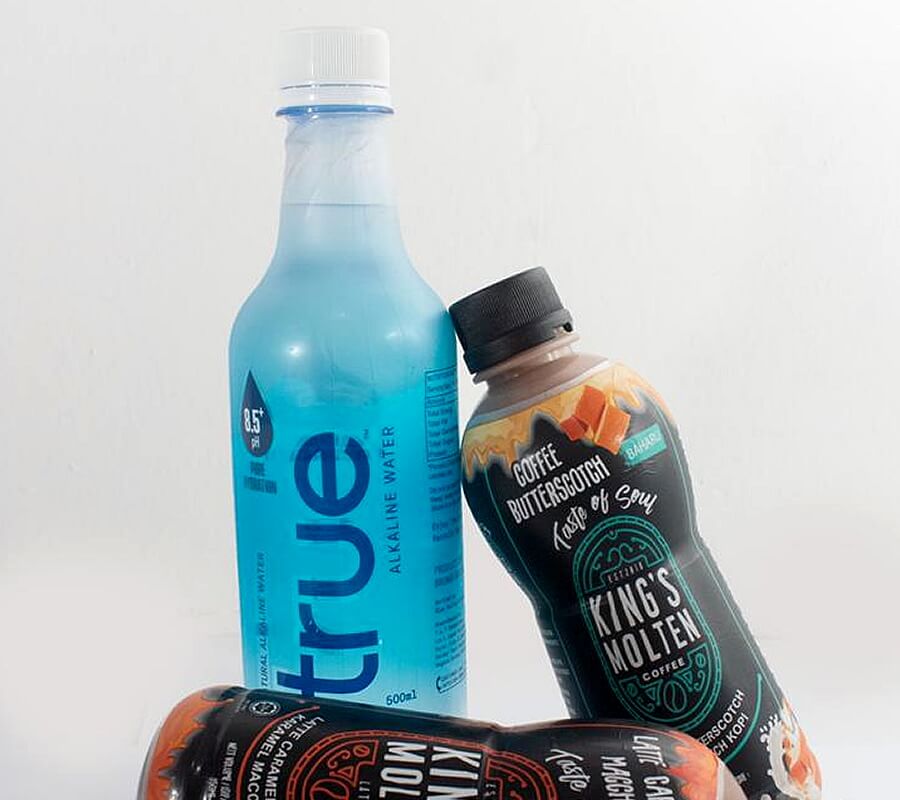

- Matte & Spot Matte Printing

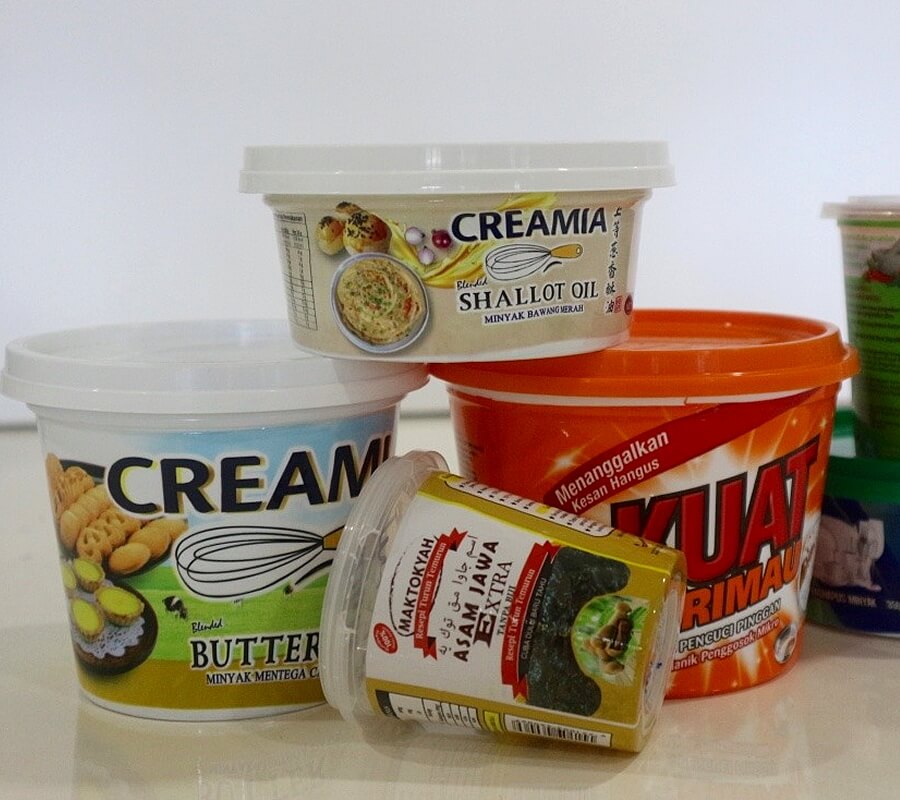

- Hot Melt Glueing Process
